電子式TNP系列
電子式TNP系列
加入諮詢
產品描述
產品內容

機型
TNP-0.5   /   TNP-2   /   TNP-5   /   TNP-10
最大扭力值
5 kg.cm   /   20 kg.cm   /   50 kg.cm   /   100 kg.cm
精度
+/- 0.5% F.S.
解析度
0.01kg.cm, 0.001 N.m, 0.01 lb.in (for TNP-2, TNP-5機型)
kg.cm, 0.01 N.m, 0.1 lb.in (for TNP-10 機型)
測量單位
可切換4種單位. kg.cm, N.m, N.cm, lb.in
測試動作
1.扭力試驗: 可測量多樣瓶蓋的開啟和關閉最大扭力值
2.可測量即時順時針和逆時針扭力
夾持範圍
10 ~ 190 mm 直徑的被測物皆可
測試平台
測試平台為完整的鋁合金平面. 無溝槽或螺絲孔, 可防止液體滲入機台
上下限
可設定上下限值, 並提供紅綠燈指示. 綠燈: OK, 紅燈: NG
扭力過載顯示
超過最大負載時, LCD 顯示閃爍 “OVR”
記憶功能
可儲存 1000 筆測量數據並有 USB 數據輸出
圖表
可顯示(扭力/次數) 長條圖
可顯示(扭力/時間) 曲線圖
統計處理
平均值, 最大值, 最小值, 標準偏差等
外型尺寸長x寬x高
320 x 227 x 126 mm
重量
約 8 ~ 12.5 kg

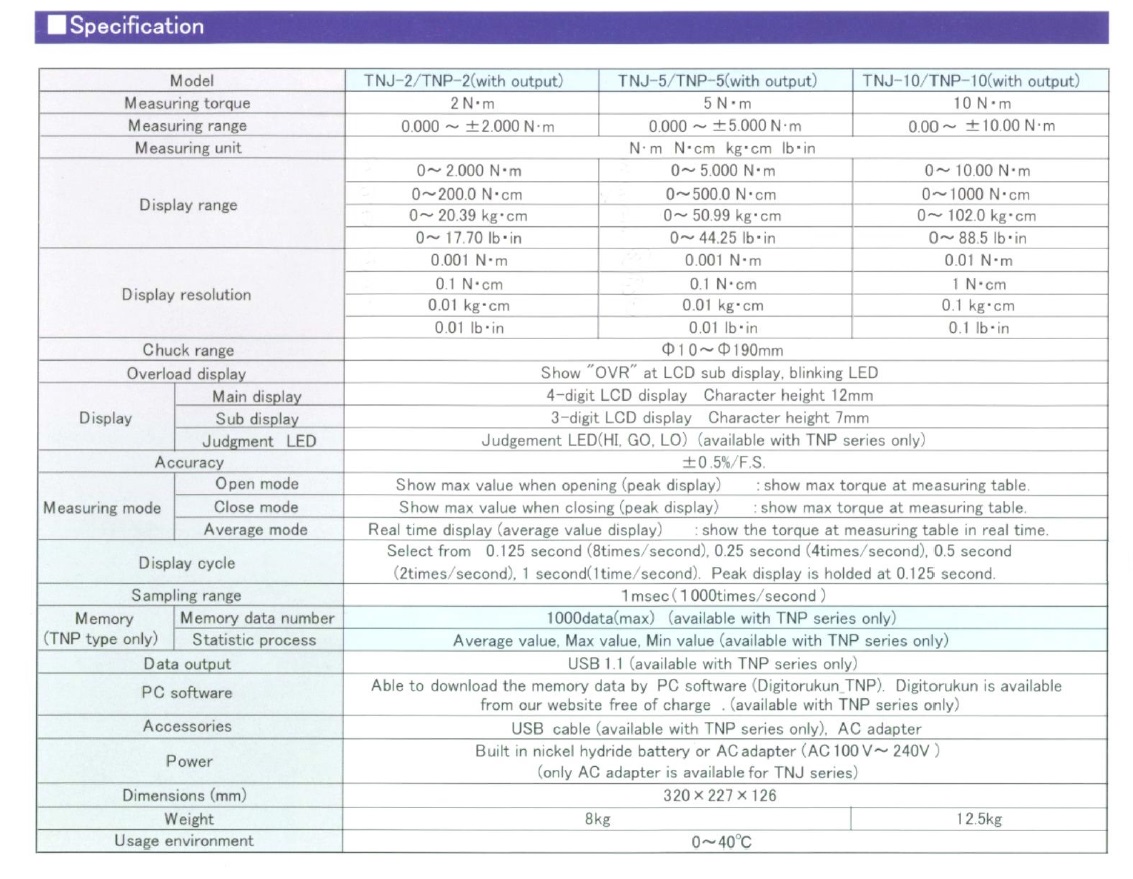

Model

TNP-5(with output)

Measuring torque

5 N.m

Measuring range

0.000 ~ ±5.000N.m

Measuring unit

N.m N.cm kg.cm lb.in

Display range

0 ~ 5.000 N.m

0 ~ 500.0 N.cm

0 ~ 50.99 kg.cm

0 ~ 44.25 lb.in

Display resolution

0.001 N.m

0.1 N.cm

0.01 kg.cm

0.01 lb.in

Chuck rang

Ø10 ~Ø190mm

Overload display

Show “OVR” at LCD sub display, blinking LED

Display

Main display

4-digit LCD display Character height 12mm

Sub display

3-digit Lcd display Character height 7mm

Judgment LED

Judgement LED(HI,GO,LO)(available with TNP series only)

Accuracy

±0.5%/F.S.

Measuring mode

Open mode

Show max value when opening (peak display): show maxtorque at measuring table.

Close mode

Show max value when closing(peak display): show max torque at measuring tbale.

Average mode

Real time display(average value display): show the torque at measuring table in real time.

Display cycle

Select from 0.125 second (8times/second),0.25 second(4times/second),0.5 second(2times/second),1 second(1time/second). Peak display is holded at 0.125 second.

Sampling rang

1 msec(1000times/second)

Memory

(TNP type only)

Memory data number

1000data(max) (available with TNP series only)

Statistic process

Average value, Max value, Min value(available with TNP series only)

Data output

USB 1.1(available with TNP series only)

PC software

Able to download the memory data by PC software (Digitorukun_TNP). Digitorukun is available from our website free of charge.(available with TNP series only)

Accessories

USB cable (available with TNP series only), AC adapter

Power

Built in nickel hydride battery or AC adapter (AC 100V~240V)(only AC adapter is available for TNJ series)

Dimensions(mm)

320*227*126

Weight

8 kg

Usage environment

0~40
